Compact Fiber-Coupled Platform for Absorbance, Scattering & Fluorescence Measurements

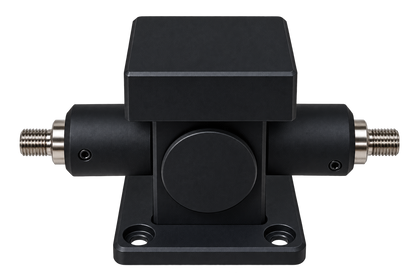

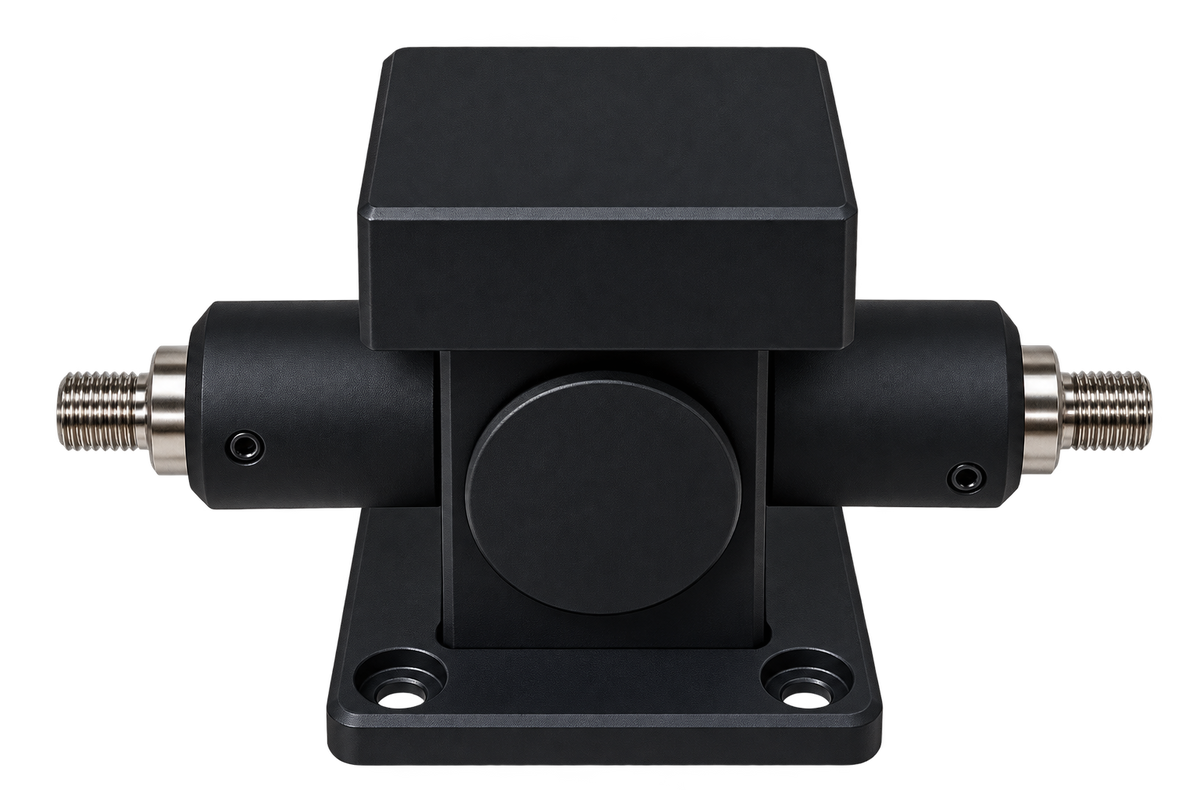

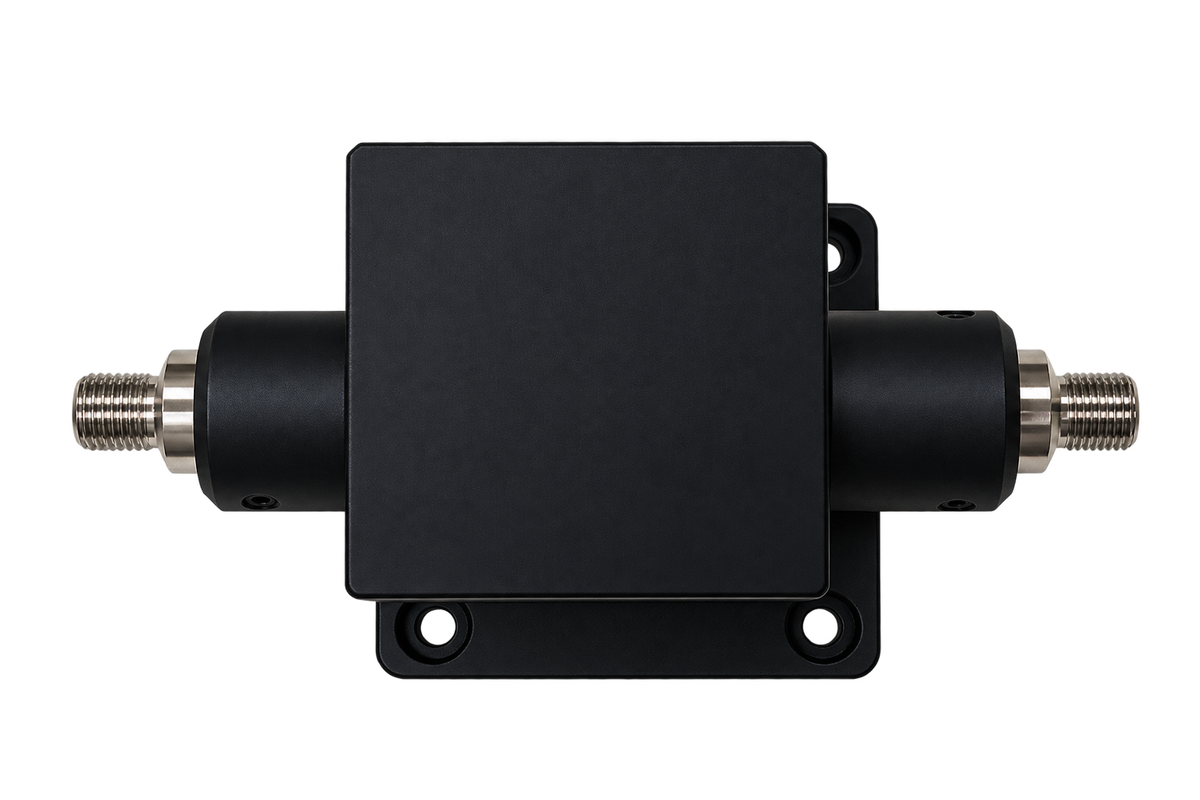

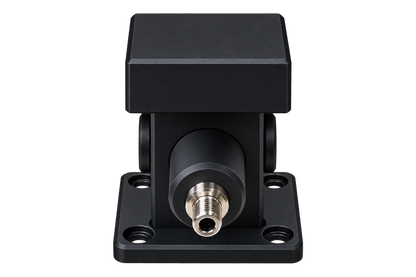

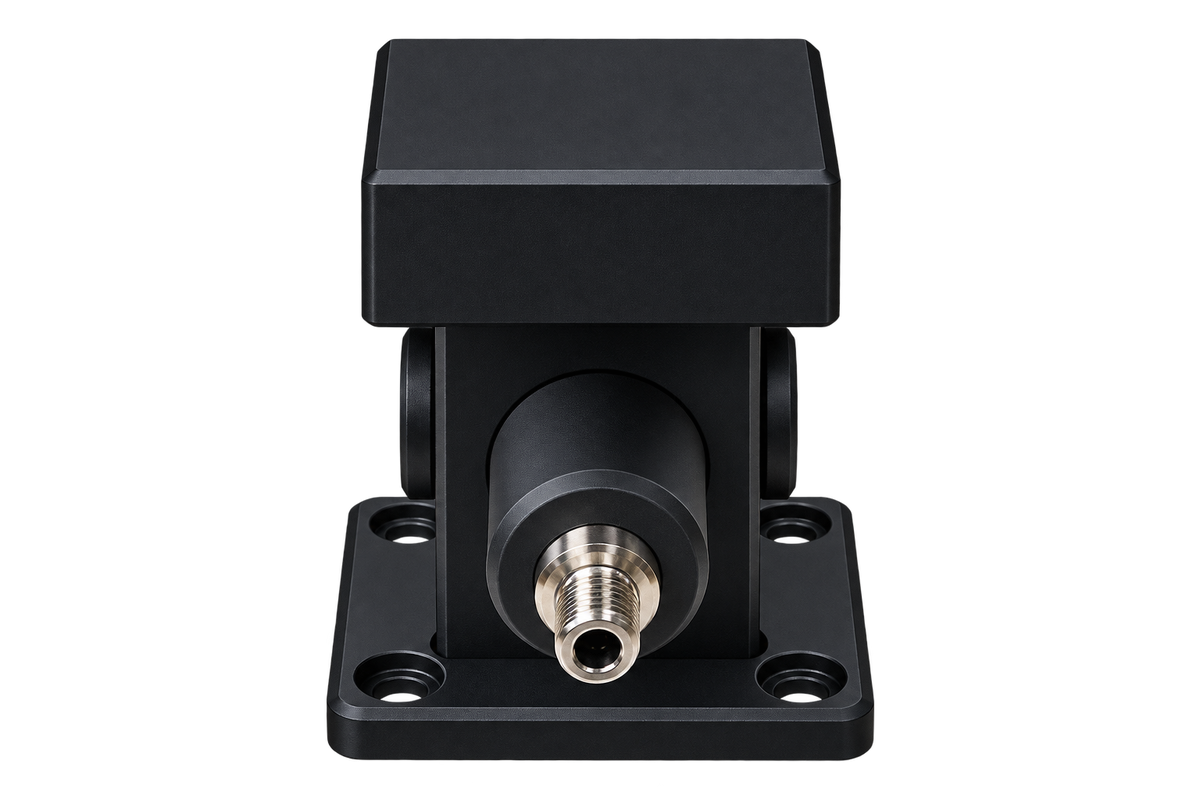

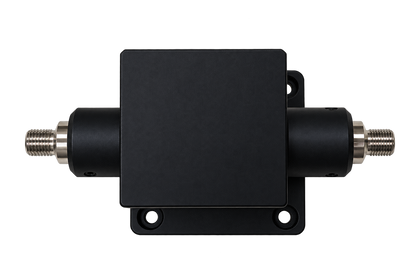

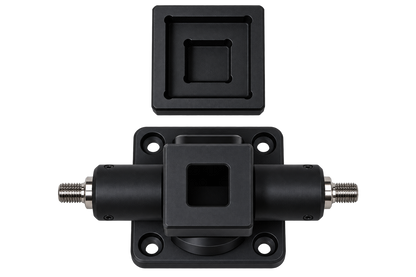

The Fiber-Coupled Cuvette Holder is a compact and modular optical platform designed for spectroscopy applications using standard 10 mm path-length cuvettes or flow cells.
Featuring an aluminum-alloy housing and configurable SMA905 or FC fiber-optic interfaces, the holder can be easily integrated with miniature spectrometers, fiber-coupled light sources, and detectors.
An integrated JGS1 fused-silica collimating lens provides broad spectral coverage from 200 to 2500 nm, making the system suitable for UV, visible, and near-infrared applications.

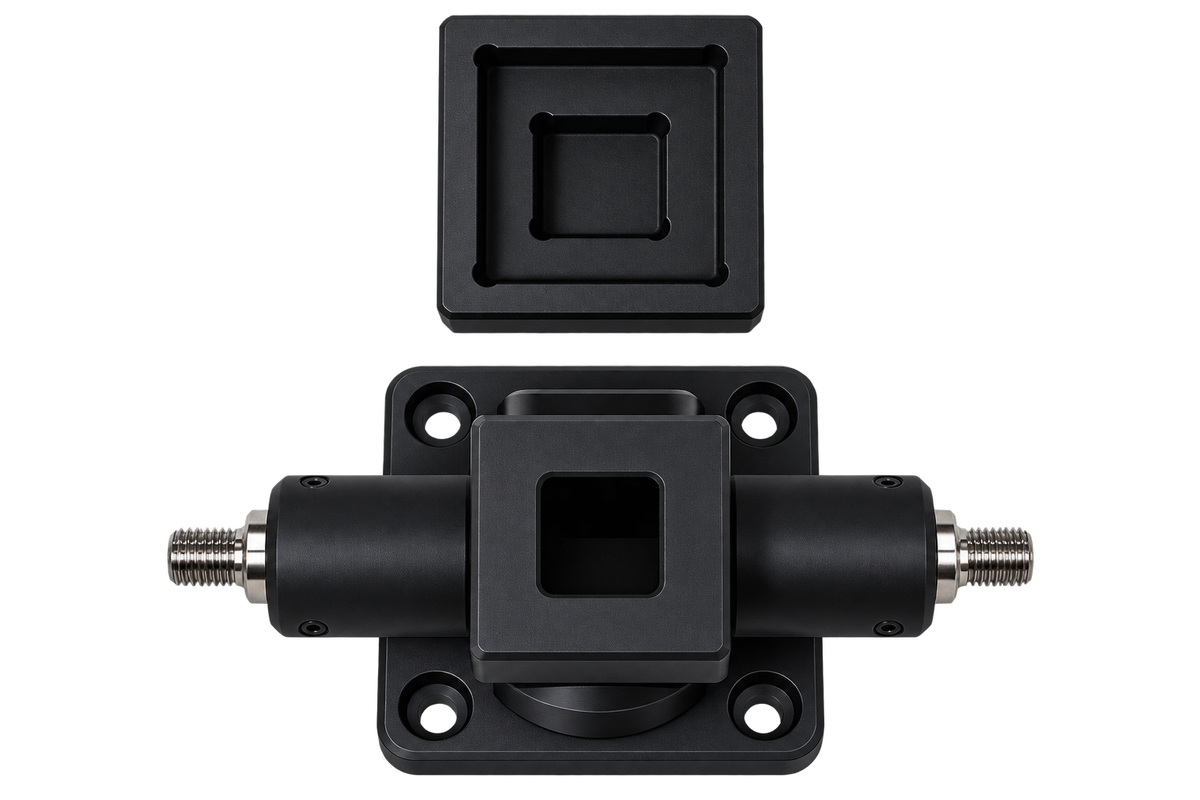

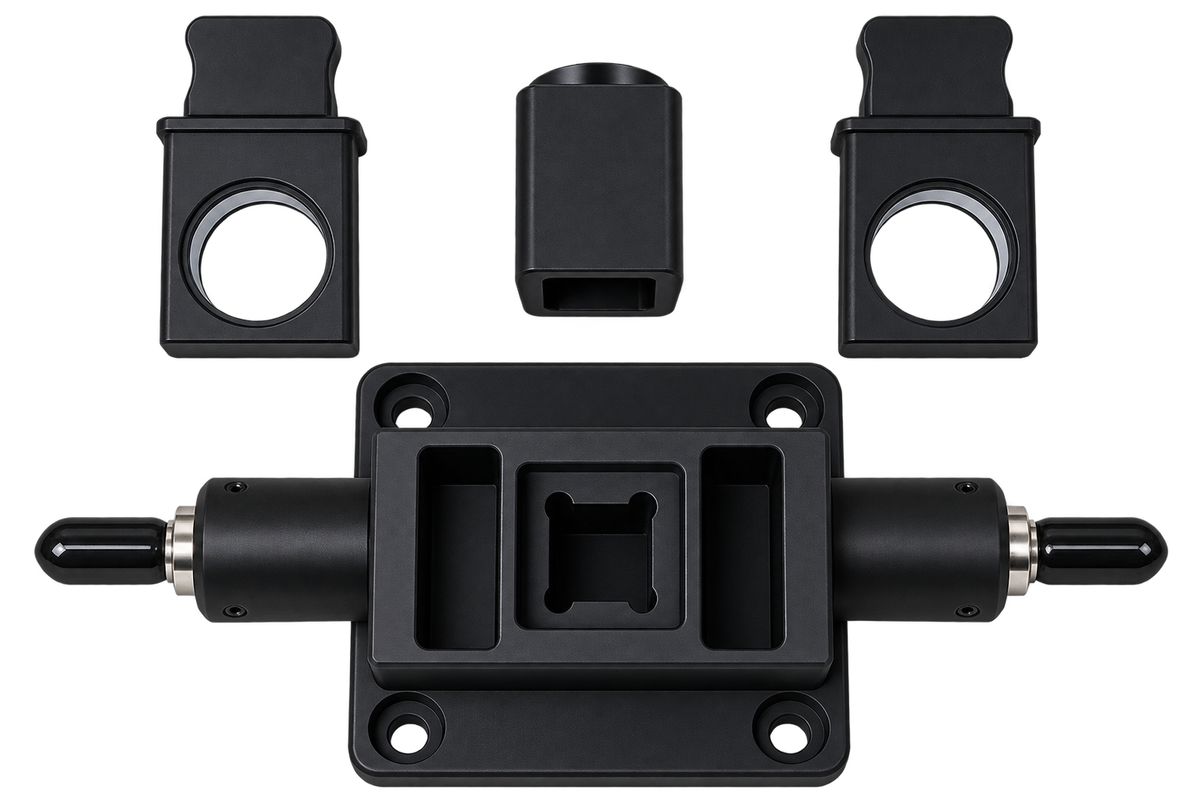

The holder can also be configured with quick-change modules for optical filters, polarizers, and additional collimating optics, allowing users to quickly adapt the system to different measurement requirements.
Highlights
- 10 mm optical path for standard cuvettes and flow cells
- 200–2500 nm spectral range
- JGS1 fused-silica optical components
- SMA905 or FC fiber connections
- Modular 2-port or 3-port configurations
- Manual optical focusing adjustment
- Quick-change filter and polarizer options
- Ambient-light shielding design
- Compact aluminum-alloy construction
- Suitable for OEM and custom spectroscopy systems
Typical Applications
Absorbance Measurement · Fluorescence Spectroscopy · Scattering Measurement · Solution Analysis · Fiber-Coupled Spectroscopy · Compact Spectrometer Systems · OEM Optical Instruments
