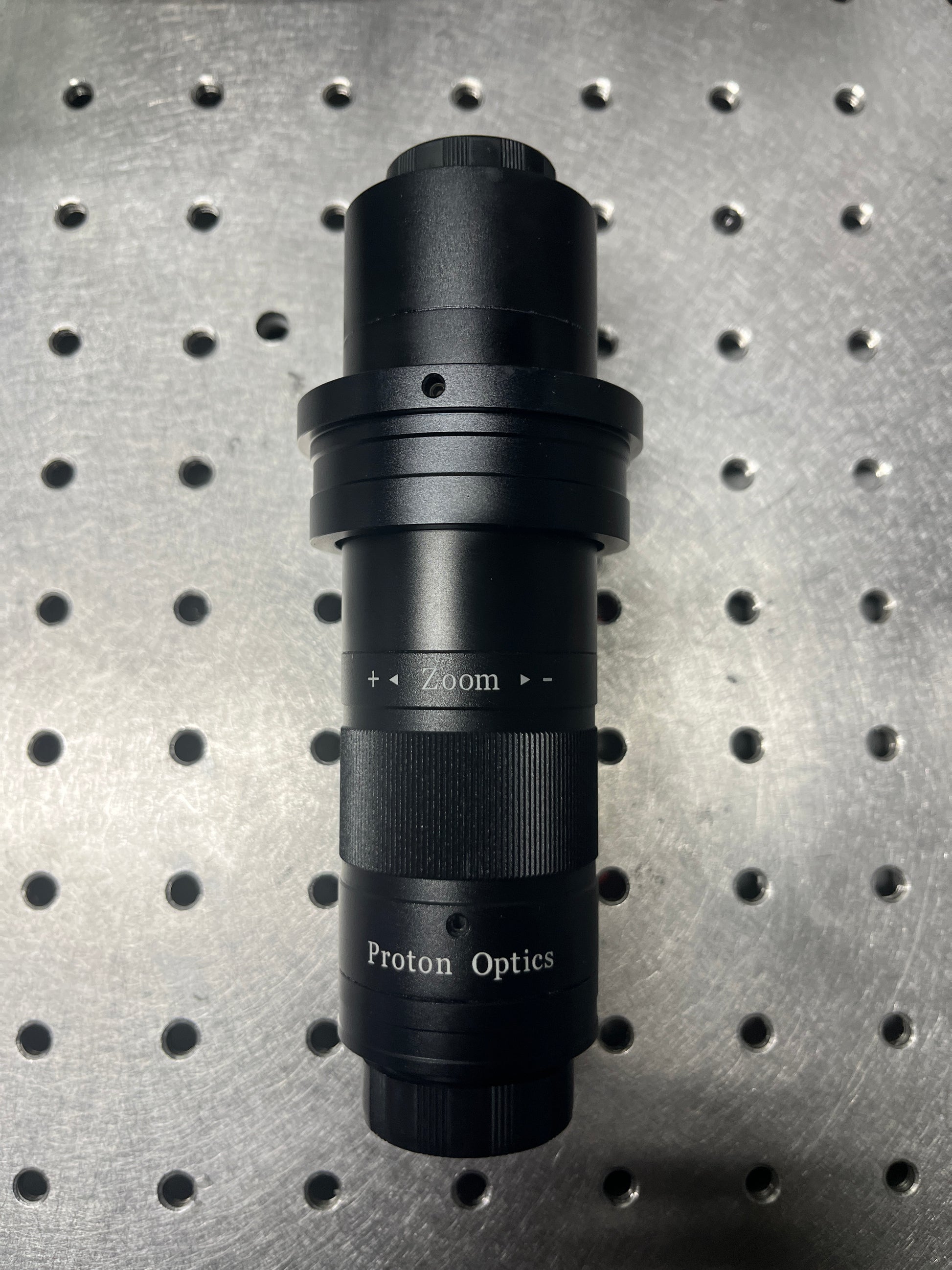

Monocular Parfocal Zoom Microscope Objective

Product Description

This product is a monocular parfocal continuous zoom microscope objective designed for high-resolution imaging in laboratory, industrial inspection, and clinical environments. It supports C-mount camera integration and is optimized for image sensors up to 1/1.8″ format, providing a wide magnification range while maintaining consistent focus throughout the zoom range.

The fixed 80 mm working distance ensures stable imaging performance and easy integration into optical systems. Its robust mechanical design supports routine disinfection using standard laboratory cleaning agents, making it suitable for cleanroom and clinical applications.

Key Features

(1) Optical and Mechanical Specifications

• Optical sensor format: ≤ 1/1.8″

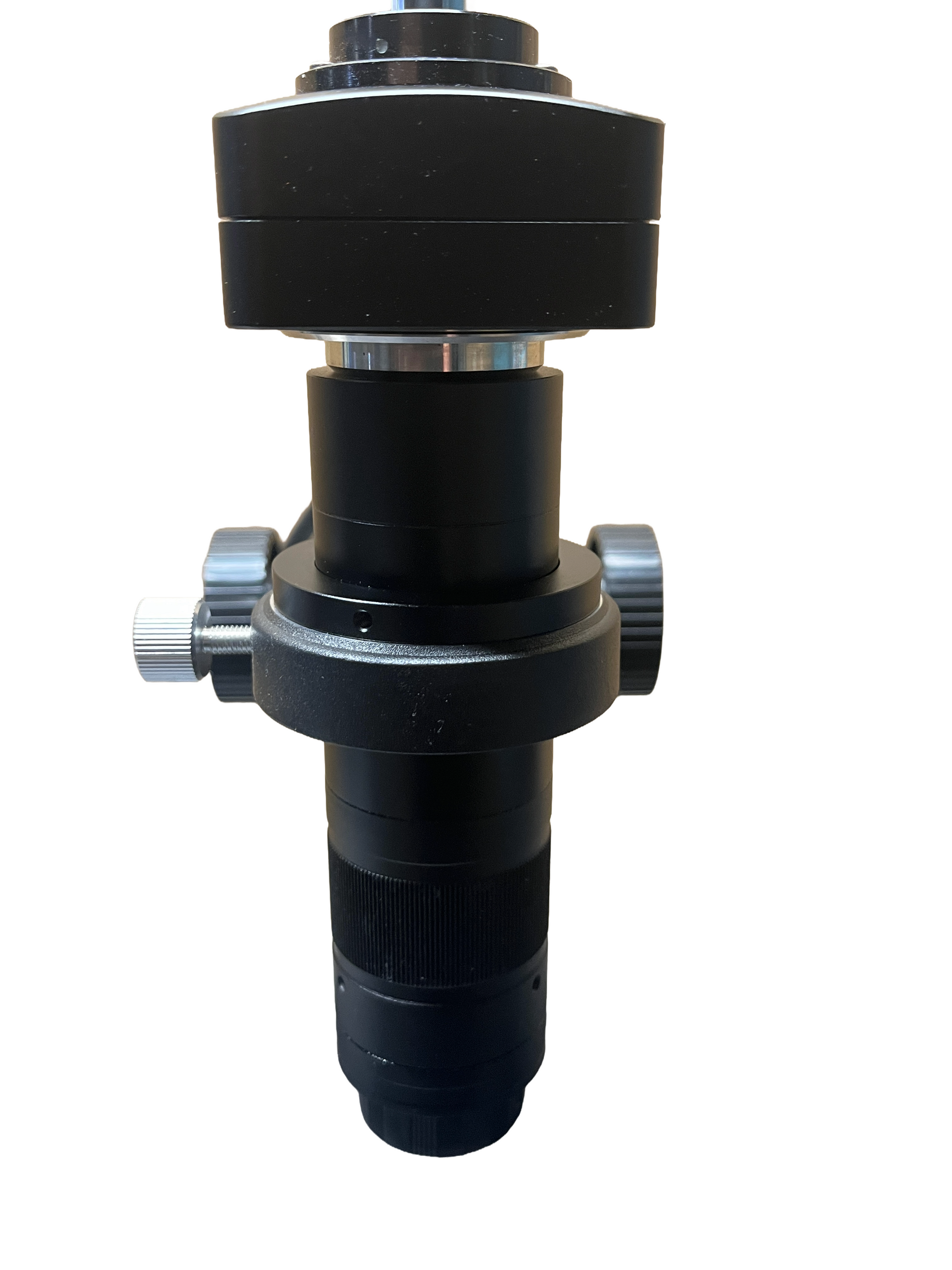

• Camera adapter: C-mount

• Magnification range: 0.53× – 4.2×

• Working distance: 80 mm

• Numerical aperture (N.A.): 0.018 – 0.092

• Field of view (diagonal): 17.02 – 2.03 mm

Mechanical Dimensions

• Overall length: 141.3 mm

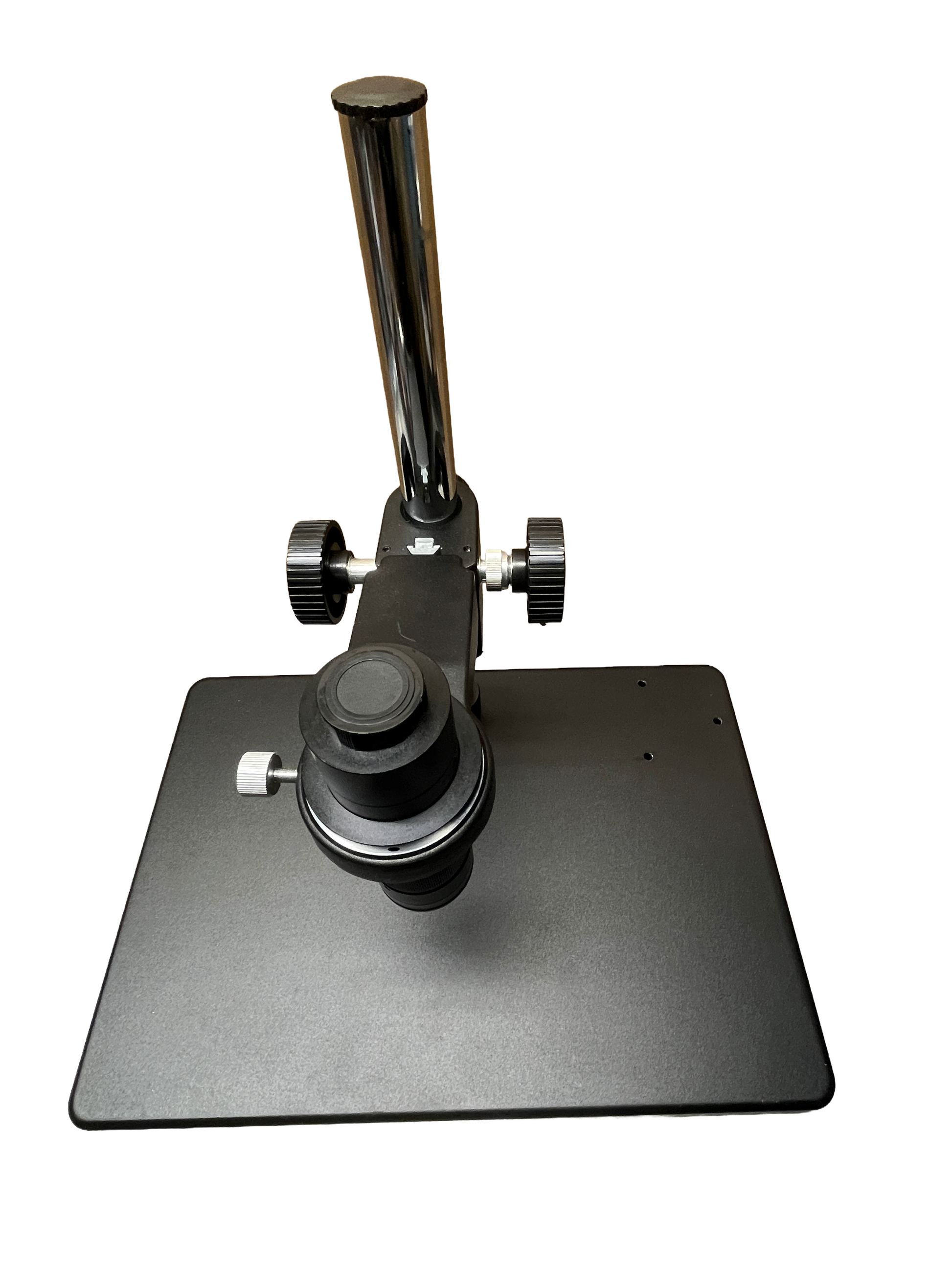

• Mount compatibility: 45 mm or 50 mm mount

(2) Disinfection Compatibility

• Compatible with 70% isopropyl alcohol and standard disinfecting wipes for safe and effective surface cleaning

(3) Optional Magnification and Working Distance Configuration

• Working distance: 160 mm

• Magnification range: 0.26× – 2.1×

• Numerical aperture (N.A.): 0.009 – 0.046

• Field of view (diagonal): 33.97 – 4.25 mm
